VS Grow Tech ™

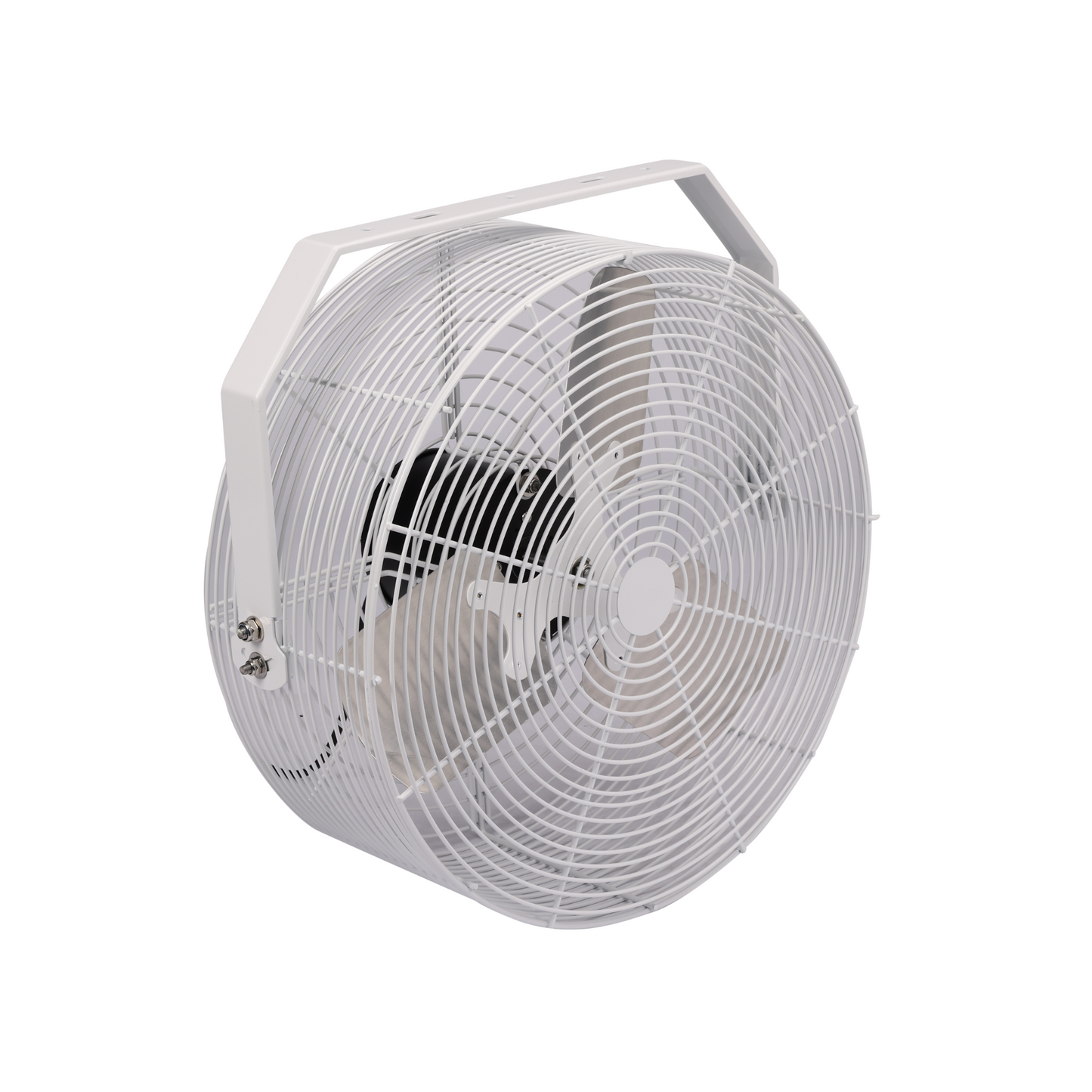

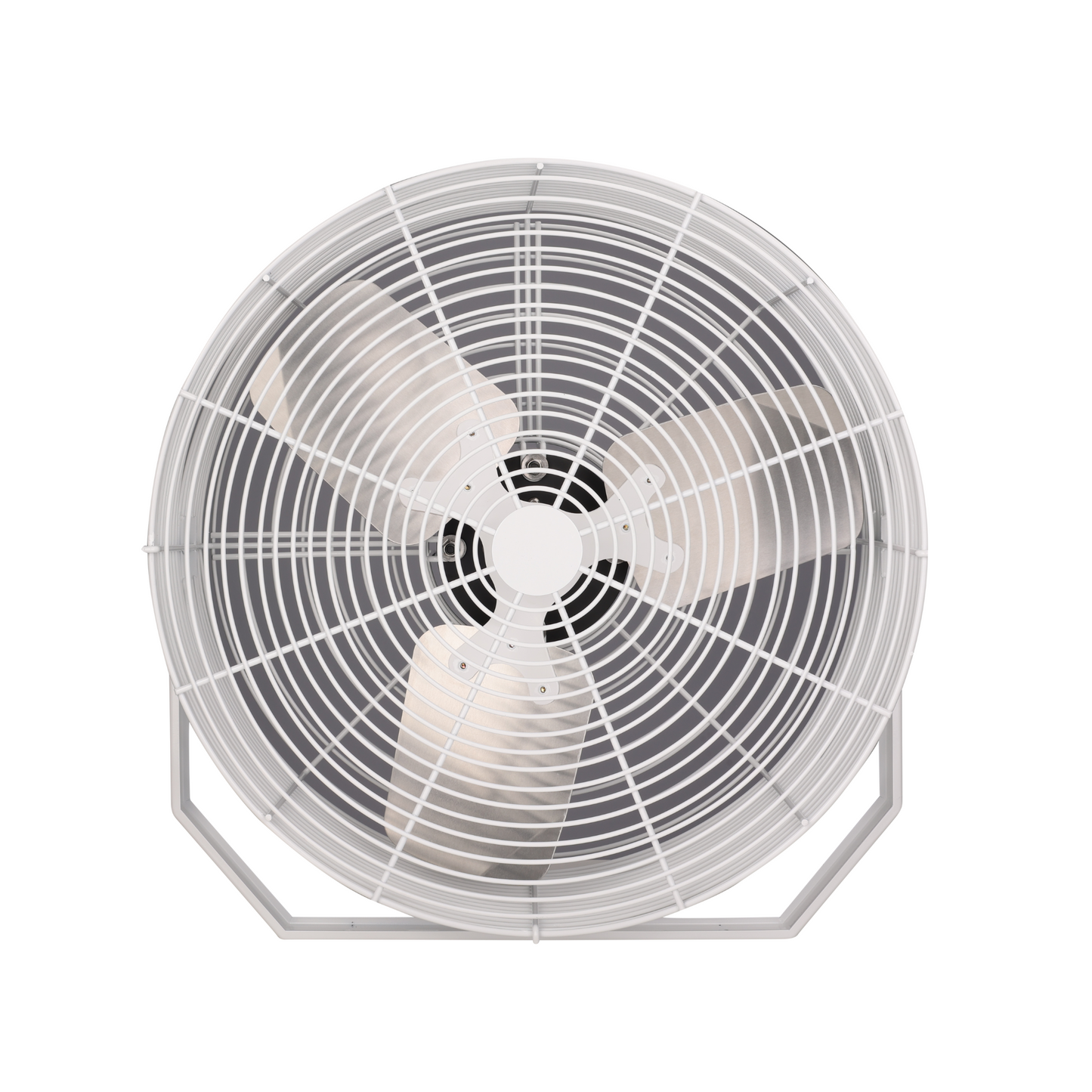

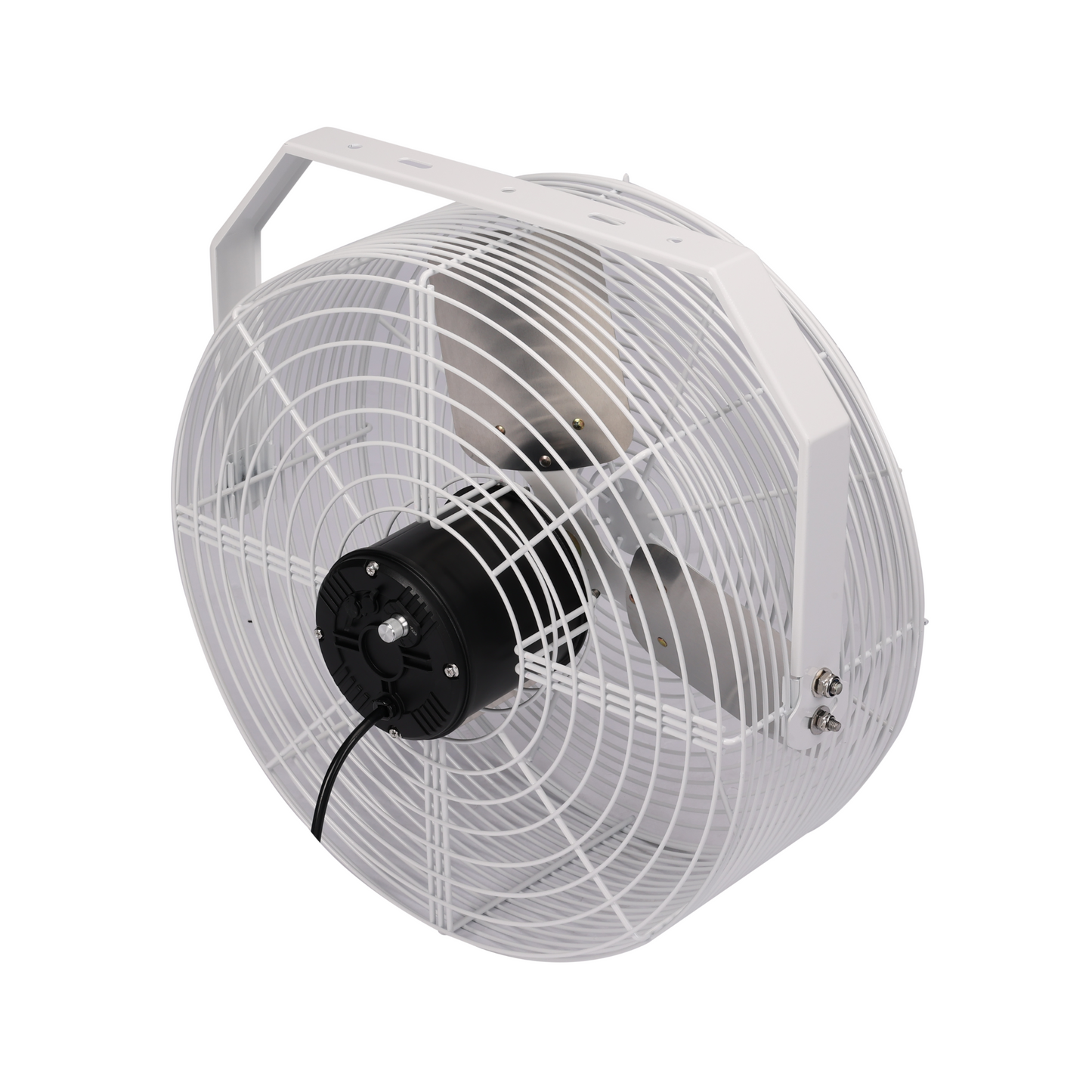

H-Flow 20" HAF 110-277v
H-Flow 20" HAF 110-277v
Regular price
$499
Regular price
Sale price
$499
Unit price
per
Ships in 15 Days
Couldn't load pickup availability
Description
Reduce heat stress and improve air quality with our uniquely designed circulation fans. Unrivaled in the market, these fans are engineered to produce greater air movement and superior cooling no matter the application. You don't hear them. You don't see them. You only feel them!
Also known as Horizontal Air Flow (HAF) fans, these fans move air in a coherent horizontal pattern creating a gentle 'racetrack' air flow pattern needed in greenhouses to maximize heat distribution and humidity control by mixing the air, from ceiling to floor.
Specifications
| Product Identification | |
| Manufacturer | VS Industrials |
| Brand | VS Grow Tech |
| Model | H-Flow 20" |
| SKU | VS-HAF20-110277 |
| Performance and Technical Specs | |
| Motor Type | EC Motor |
| Power | 250 watts |
| Voltage | 110 - 277 |
| Diameter | 20 in. |
| CFM (free air) | 5850 |
| Cfm/watt (free air) | 21.67 |
| Cfm Range (free air) | 5001 - 10000 |
| Maximum RPM | 1650 |
| Air Velocity | 7.1 m/s (@ 5x diameter) |
| Cord Length | 7 ft. Included. |
| Enclosure | Iron |
| Frame Size | 22.8 x 16.5 in. (diameter x length) |
| Package Dimensions | 23 x 23 x 20 in. |
| Net Weight | 28 lbs. |
| Mount Included | RF005, Ceiling |
| Nameplate Amps | 2.25 |
| Phase | 1 |
| Frequency | 50/60 |
| Speeds | 18% - 100% |
| External Control | RJ Connection |
| Dimmer Switch | Yes |
| Oscillating | No |
| Color | White |
| Guard Material | Powder Coated Steel |
| Guard Spacing | 1/2 - 1 in. UL507 |
| Guard Color | White |
| Blade Color | Metallic |
| Blade Material | Aluminum |
In the Box
(1) H-Flow 20" Fan, 110-277v
(1) 8ft 120v AC Power Cord
(1) 8ft 120v AC Power Cord
(1) 8ft RJ14 Daisy Dim Cord
(1) 120v - 240v Adapter Plug
(1) Powder Coated Steel Mounting Bracket
(1) 120v - 240v Adapter Plug
(1) Powder Coated Steel Mounting Bracket
Lead
This product is manufactured per order.
| Estimated Lead Time | |
| <24pcs | < 2 weeks |
| 25 - 99pcs | 3 + weeks |
| 100pcs + | 4 + weeks |
